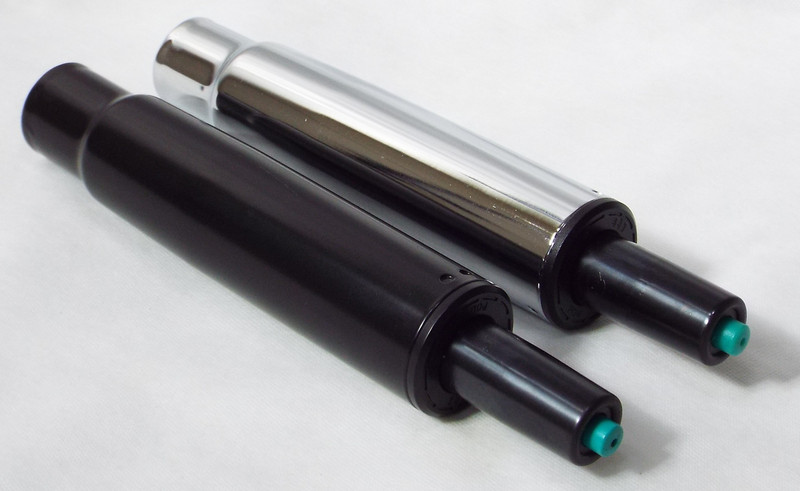

9" Gas lift - Drop Through - Black or Chrome - Class 4
Compatible with Humanscale Freedom chairs
- Available in Black or Chrome
- 9" outer casing length
- Column/piston diameters are 50mm (tapered to fit) at seat mechanism
- Suitable for executive or managers chairs
- Heavy duty 150kgs / 23 stone
- BS, BIFMA & SATRA Certified
- 5 YEAR GUARANTEE
- Same day dispatch if ordered before 2pm. DPD next day delivery.
Measurements
- Pressure cylinder: 10" (250mm)
- Outer body casing: 9" (230mm)
- Compressed overall: 11¼ (285mm)
- Extended overall: 16" (410mm)
Please note:
- You can now add our removal tool to your purchases, if you choose to hire the tool it will need to be returned to us within 10days, a returns label will be sent to you via email to print at home.
If you are unsure about fitting or sizing, please contact us & we will be happy to advise.
The term 'drop through' refers to where the bottom of the gas lift protrudes through the bottom of the base, usually used with pyramid style bases.
Measure 'A', the total length of the 50mm outer body casing ONLY to determine the correct size
